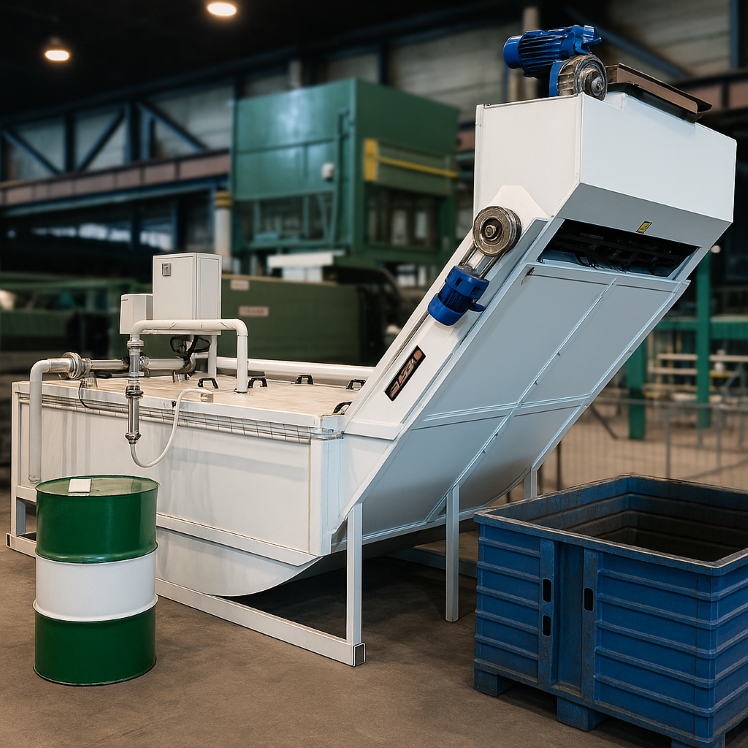

Special & Combination Filters
We develop applications where a single filter type is insufficient by combining magnetic separators, flatbed filters, gravity filters, centrifuges, and customised tank/pump systems to create optimally balanced purification solutions for both small machines and central systems. Systems are sized according to the customer's flow rate, particle type, cleanliness requirements, and layout.
Typical Applications
- CNC machining with varying materials
- Grinding, honing, and superfinishing
- Separation of magnetic particles after centrifugation
- High-flow systems with large quantities of grinding dust and sludge
- Machine lines with sensitive high-pressure pumps
- Processes where both magnetic and non-magnetic particles occur
- Central cutting fluid systems
Benefits
- Optimal filtration efficiency at all flow rates
- Can be expanded, relocated, or modified over time
- Low operating and maintenance costs
- Flexible design—customised to layout and machine systems
- Extended service life for cutting fluids and tools
- Reduces load on machines, pumps, and channels
System Integration
Special & combination filters integrate easily with:
- Conveyors
- Centrifuges
- Flatbed filters
- Magnetic separators
- Tanks
- Monitoring systems
- Level sensors and flow sensors
Primetek offers design, engineering, installation, and service.
Contact Us for Fast Support
Questions or Need Help Finding the Right Solution?
We would be happy to help you and will get back to you shortly. Use the form below, call, or email us for advice, customisations, and quotations.
Call: +46 21 33 80 500 | Email: info@primetek.se
Design
Combination filters are built from modular units that can be combined in multiple stages. Typical modules:
- Magnetic separators (DMP)—remove magnetic particles down to micron level
- Flatbed filters (FB)—separate mixed fine particles and sludge
- Gravity filters—higher capacity, consistent filtration over larger filter area
- Centrifuges—separate sludge, fine particles, and fluid more aggressively
- Tanks & pumps—customised for fluid type, return flow, and layout
Systems can be built for 1–10 machines or as larger central systems.
Operation
Fluid is directed progressively through different filter modules, where each stage separates its type of contamination:
- Magnetic separators remove magnetic particles and also function as pre-filters.
- Flatbed filters remove non-magnetic particles, grinding dust, and mixed contaminants.
- Gravity filters use pressure differential and large filter area to provide stable filtration efficiency at higher flow rates.
The result is cleaner fluid, longer run times, reduced wear, and more stable processes.
Accessories
- Custom clean fluid tank
- Pumps
- Custom filter media
- Support wheels and/or adjustable feet
- Custom support structures
Technical Specifications
AML combination filters are available in multiple configurations for various flow requirements and applications.
| Model | Capacity* [l/min] |
|---|---|
| AML FB1/R | 40 |
| AML FB1 | 50 |
| AML FB2 | 100 |
| AML FB3/1500 | 150 |
| AML FB3/2000 | 200 |
| AML FB3/2500 | 250 |
| AML FBL/2500 | 350 |
| AML FBL/3000 | 450 |
