Magnetic Separator DMP Series
Magnetic separators in the DMP series are magnetic drum filters for continuous purification of cutting fluids, grinding oils, and process fluids with high magnetic particle content.
Through a slowly rotating magnetic drum with powerful permanent magnets, even very fine iron particles are captured, resulting in cleaner fluids, longer tool life, and reduced equipment wear.
Typical Applications
- Machining centres that generate magnetic particles (steel, cast iron)
- Grinding, honing, and superfinishing
- Separation of magnetic particles after centrifugation
- Pre-filtration before sensitive pumps
- Central cutting fluid systems
- Purification of neat oils with very fine particle sizes
Benefits
- Separates magnetic particles down to microscopic size
- Slow-speed drum provides very high separation efficiency
- Permanent magnets with strong and deep magnetic field
- Low energy consumption and minimal maintenance
- Stainless steel construction in wear surfaces
- Easy installation and high reliability
- Can be used with both emulsions and neat oils
System Integration
The magnetic separators can be used standalone or integrated into complete filtration systems together with flatbed filters, tanks, pumps, and centrifuges.
The DMP series works equally well as a primary separator or pre-filter before finer filtration stages.
Contact Us for Fast Support
Questions or Need Help Finding the Right Solution?
We would be happy to help you and will get back to you shortly. Use the form below, call, or email us for advice, customisations, and quotations.
Call: +46 21 33 80 500 | Email: info@primetek.se
Design
The DMP series is available in sizes from 50 to 500 l/min and can be delivered standalone, mounted on a tank, or as part of complete filtration systems.
The drum consists of sintered permanent magnets mounted on a stainless steel support structure and is rotated by a worm gear motor at very low speed for optimal separation.
Operation
Contaminated fluid is directed into the drum's rear chamber where it passes over the strongly magnetised steel discs.
Magnetic particles adhere directly to the drum surface. Non-magnetic particles are also captured indirectly, as the magnetic particle layer acts as a fine filter.
As the drum rotates, contaminants are automatically scraped off via an adjustable scraper blade and directed to a sludge discharge.
Purified fluid flows onwards to a tank or the next stage in the purification process.
Accessories
- Custom clean fluid tank
- Pumps
- Custom dirty fluid tank
- Support wheels and/or adjustable feet
- Custom support structures

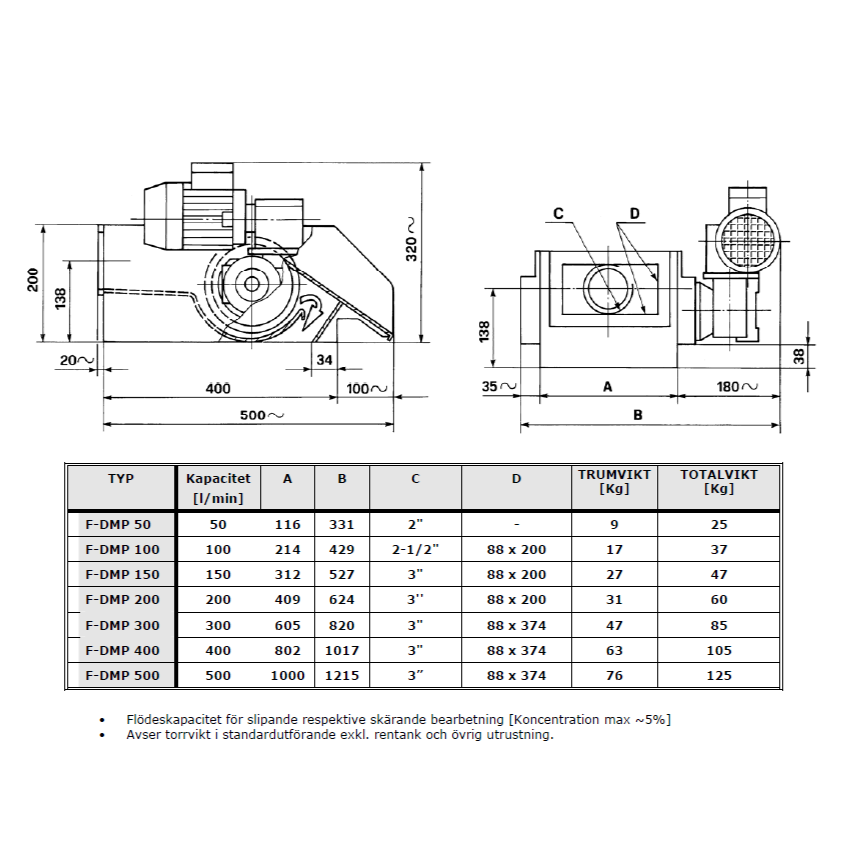

Technical Specifications
The magnetic separators in the DMP series are designed for long service life, high magnetic separation efficiency, and minimal maintenance in continuous operation.
| Flow capacity | 50-500 l/min |
| Drum width | 116 - 1,000 mm |
| Drum weight | ~9 - 76 kg |
*Flow capacity refers to emulsion (max 5%)
